Ultimate Ballast

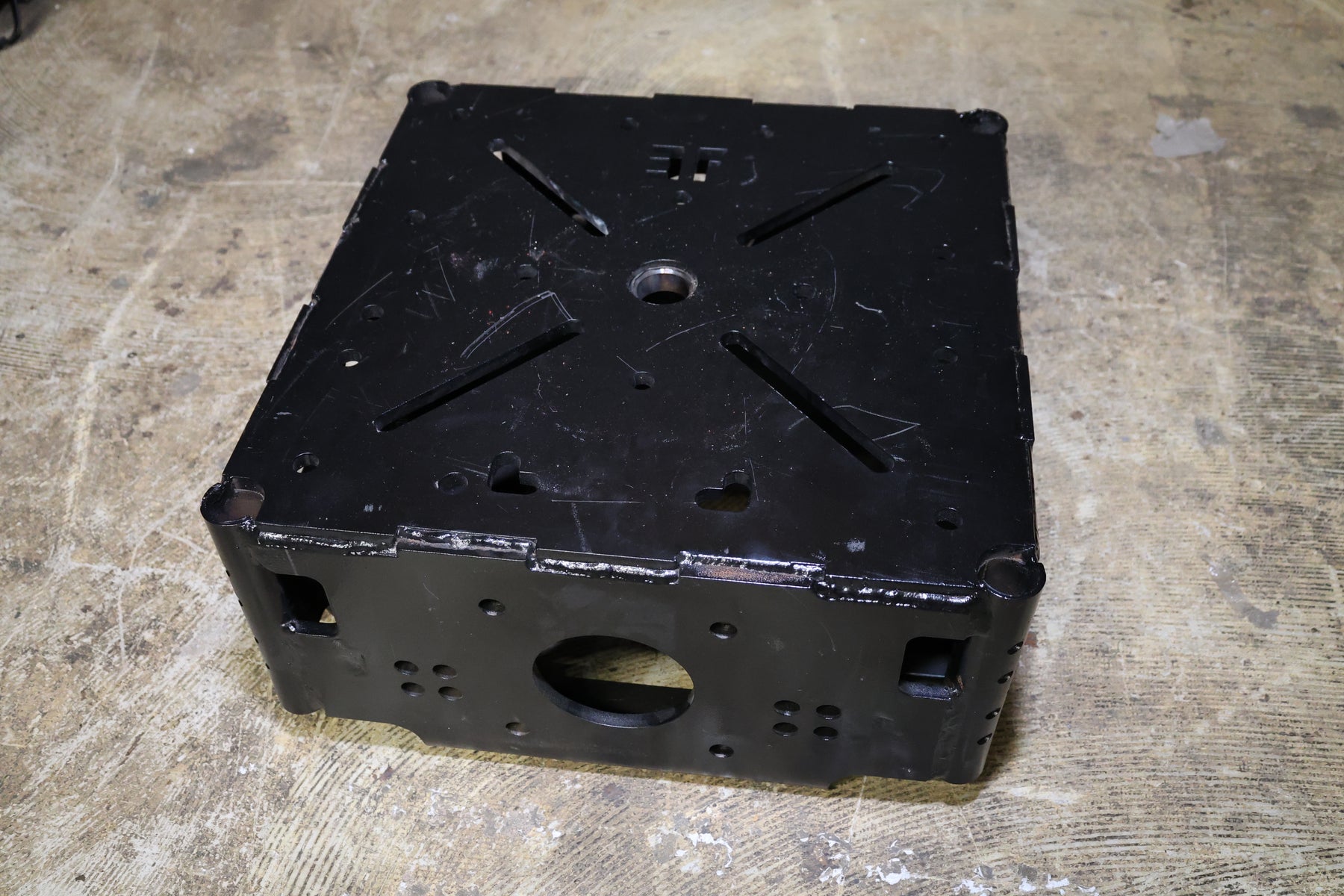

Big outdoor structures are rarely cut and paste — that’s why our Modular Ballast Unit is built to adapt. From outdoor roofs to line array towers, it gives you the flexibility, footprint, and weight needed for real-world rigging.

Designed to support large, heavy, and awkward truss structures, this unit’s modular layout allows you to:

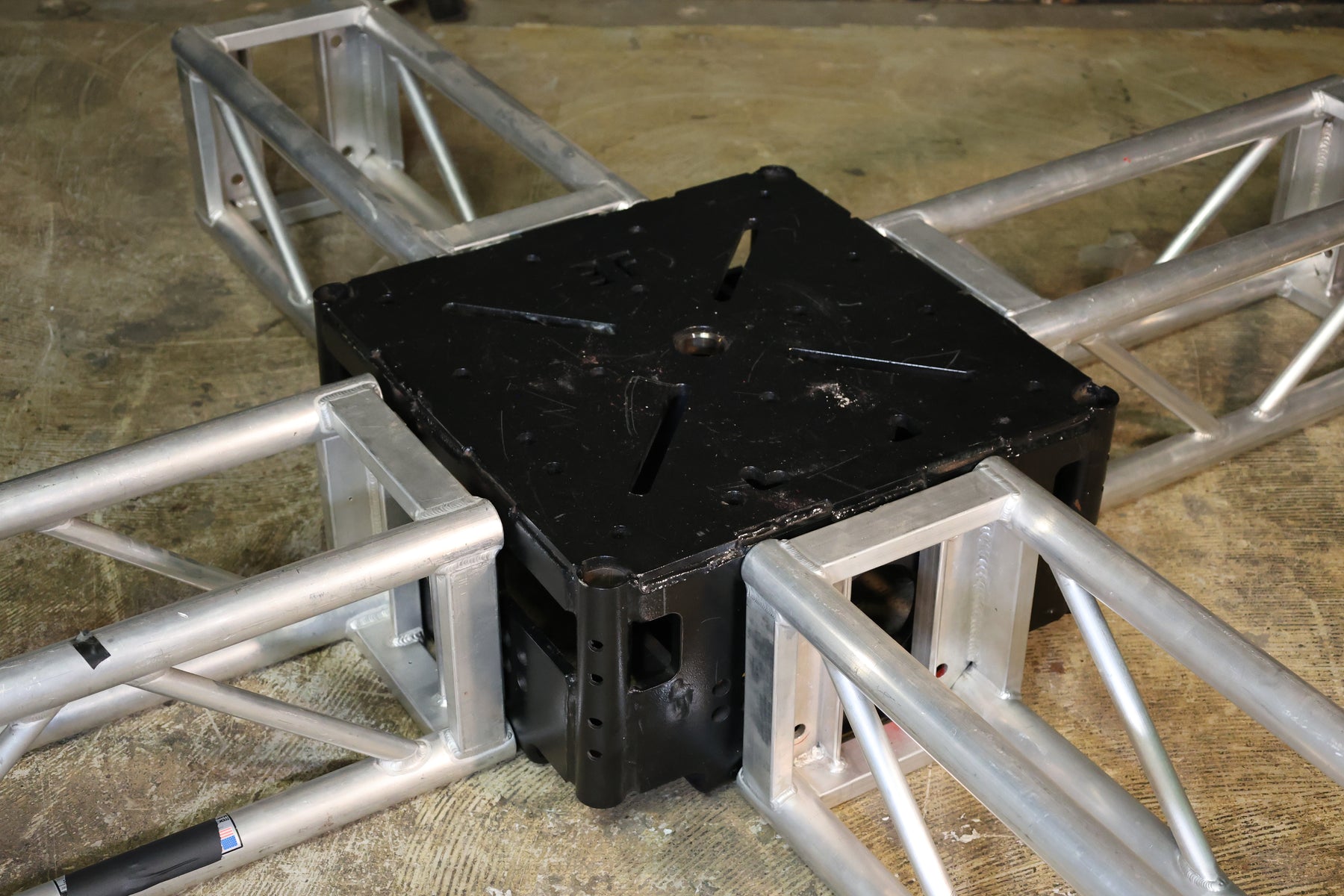

• Mount 12", 16", or 20.5" truss directly to all five sides

• Stack units vertically or horizontally to increase footprint and weight

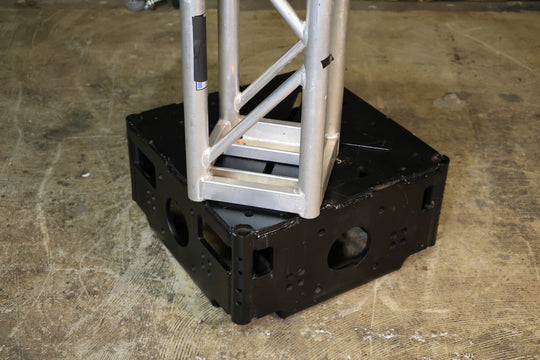

• Offset and Diamond mount 12" truss

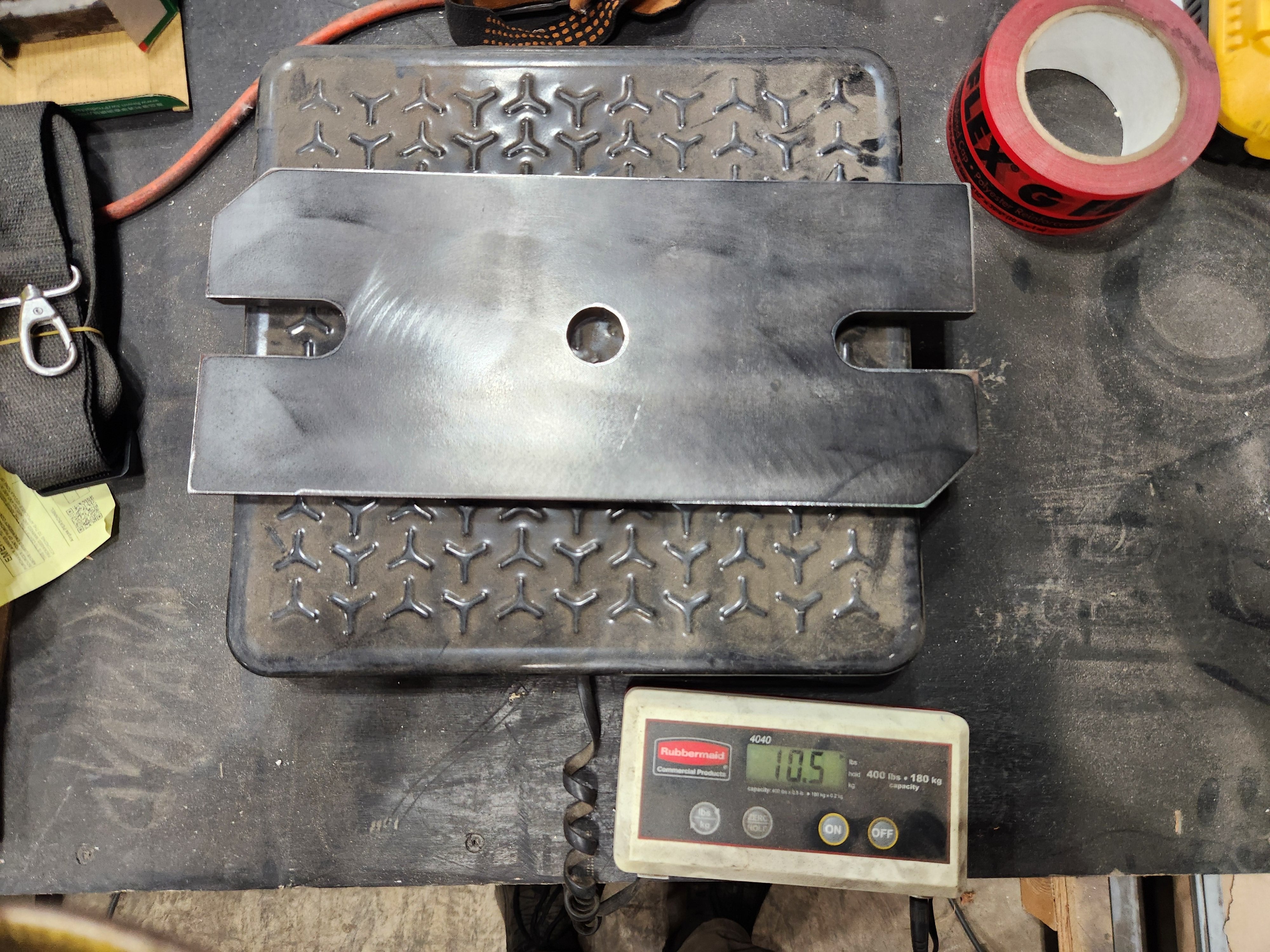

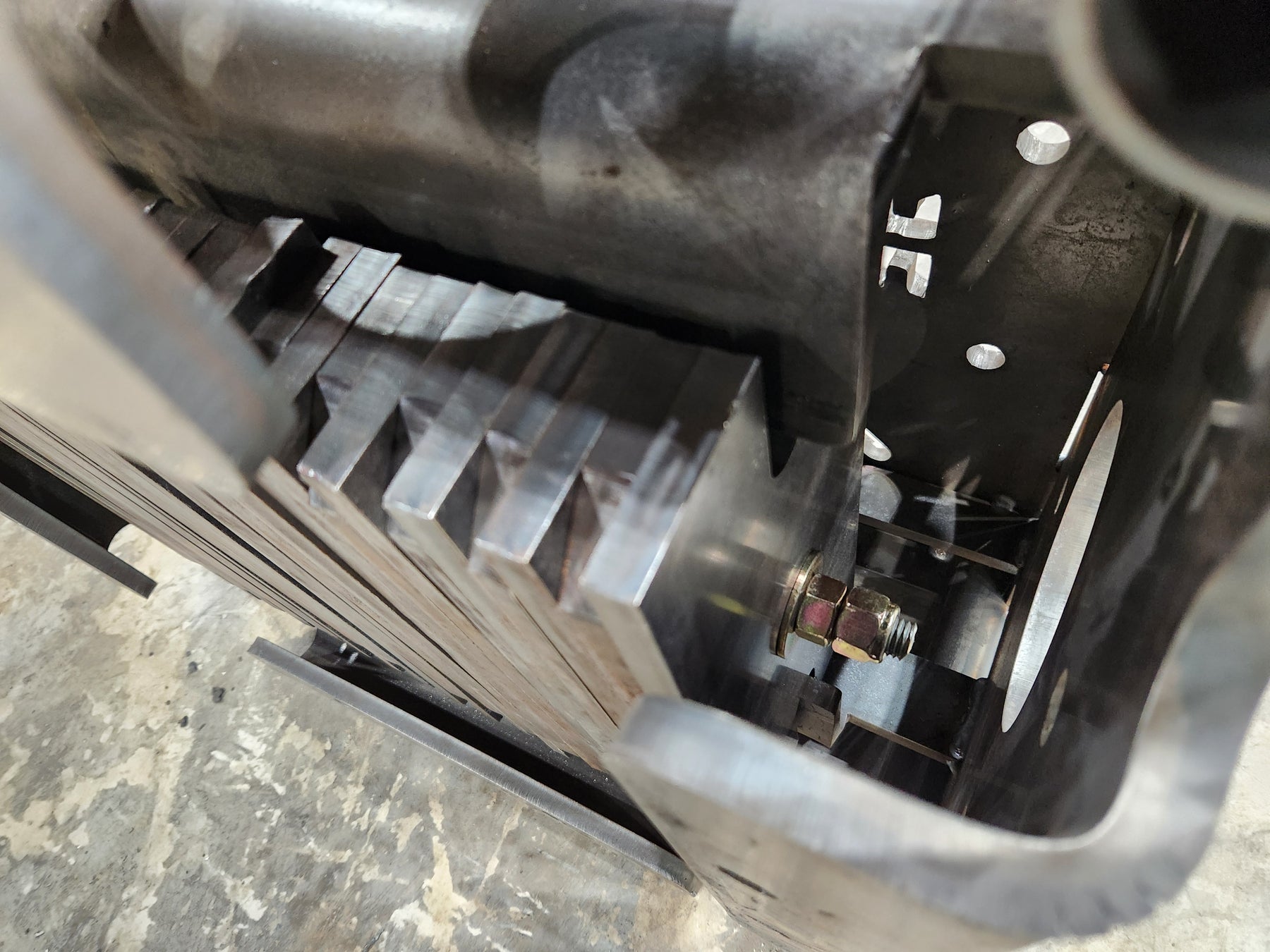

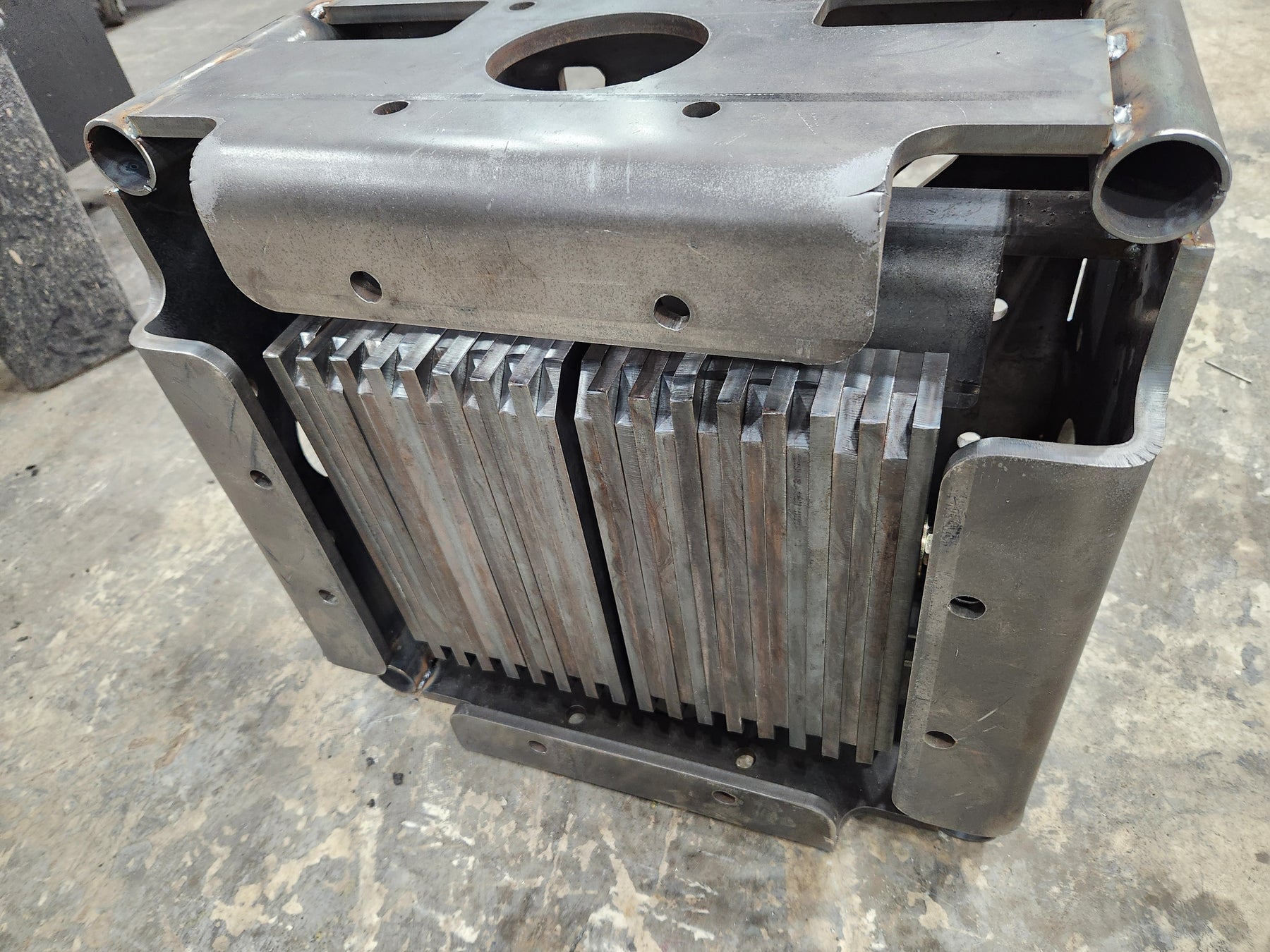

• Bolt in arbor or XL weights to increase mass

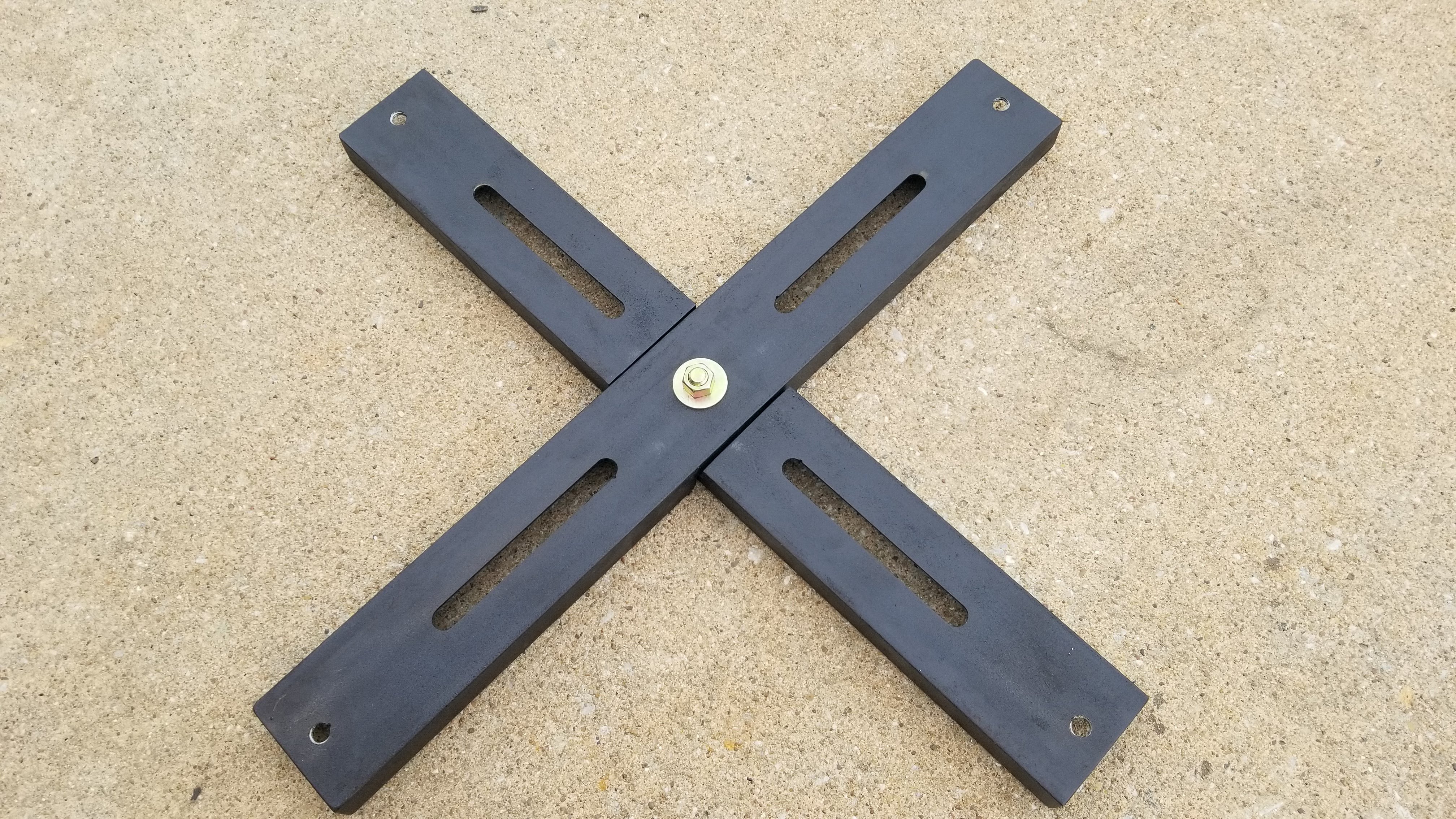

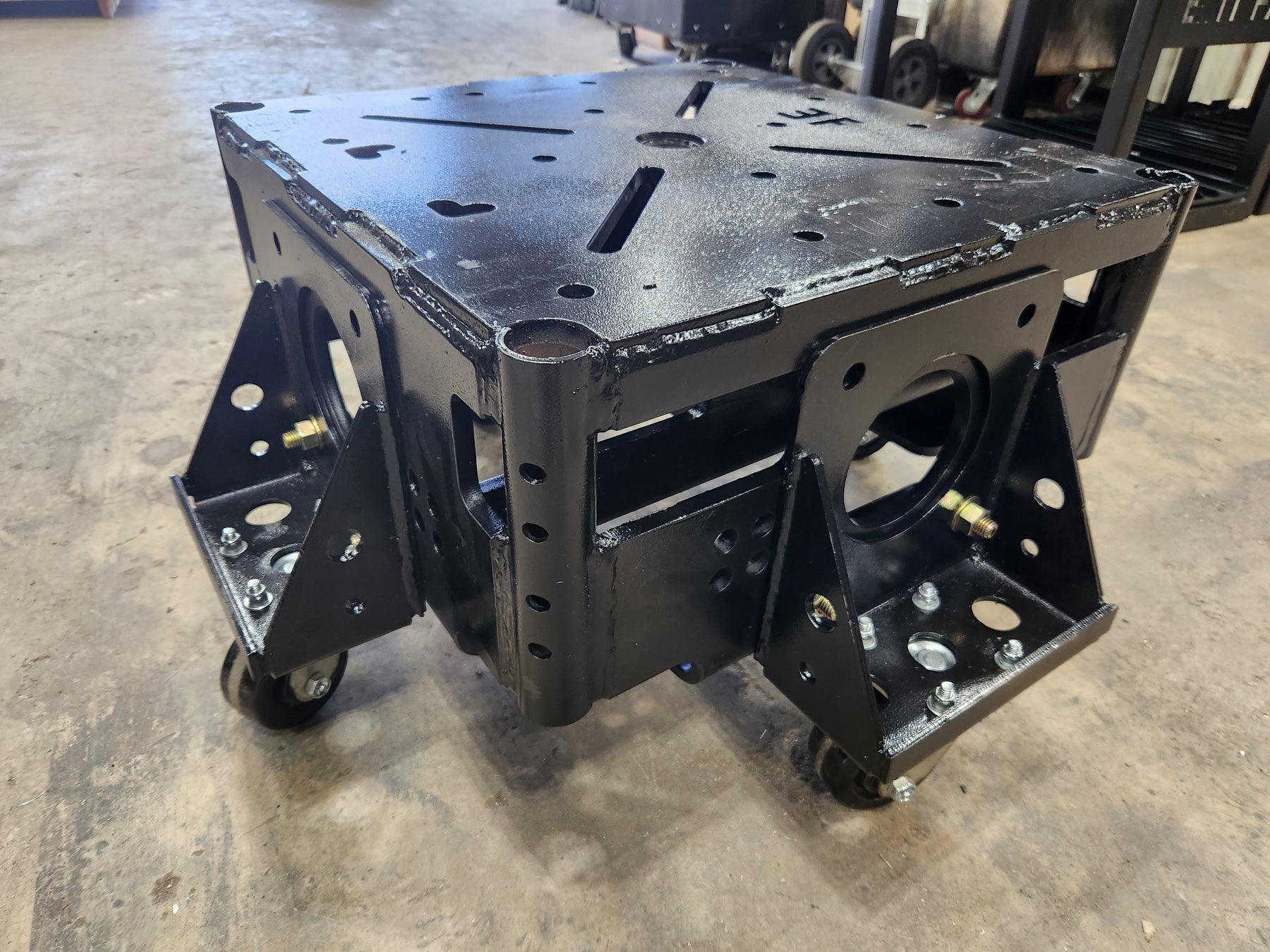

• Attach screw jacks, leveling feet, casters, or ground stakes via the corner provisions

Specs & Weight Capacity

• Empty weight: 267 lb

• With 6” arbor weights: 654lb

• With XL weights: 875 lb

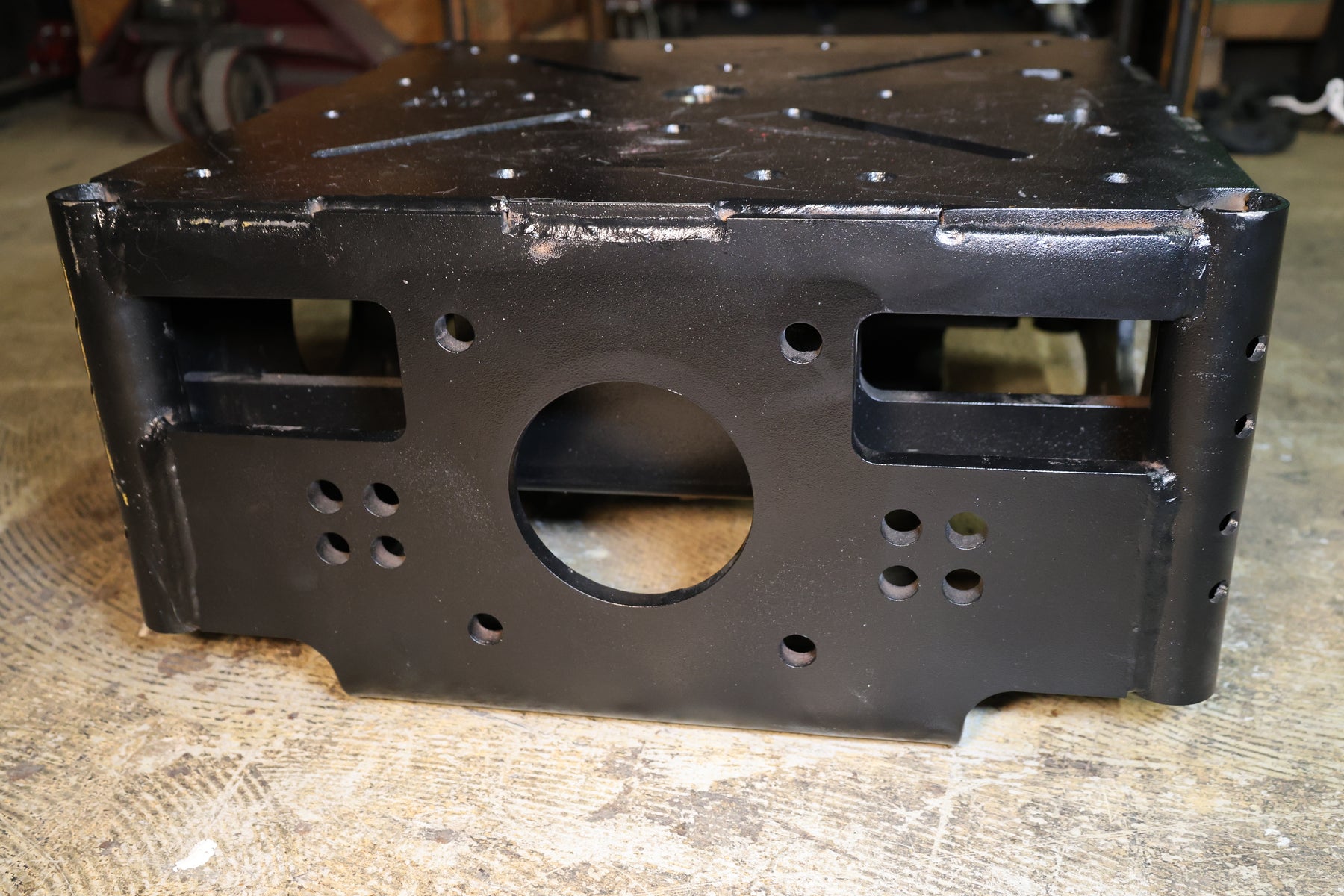

• Forklift access: Pass-through fork slots for easy transport

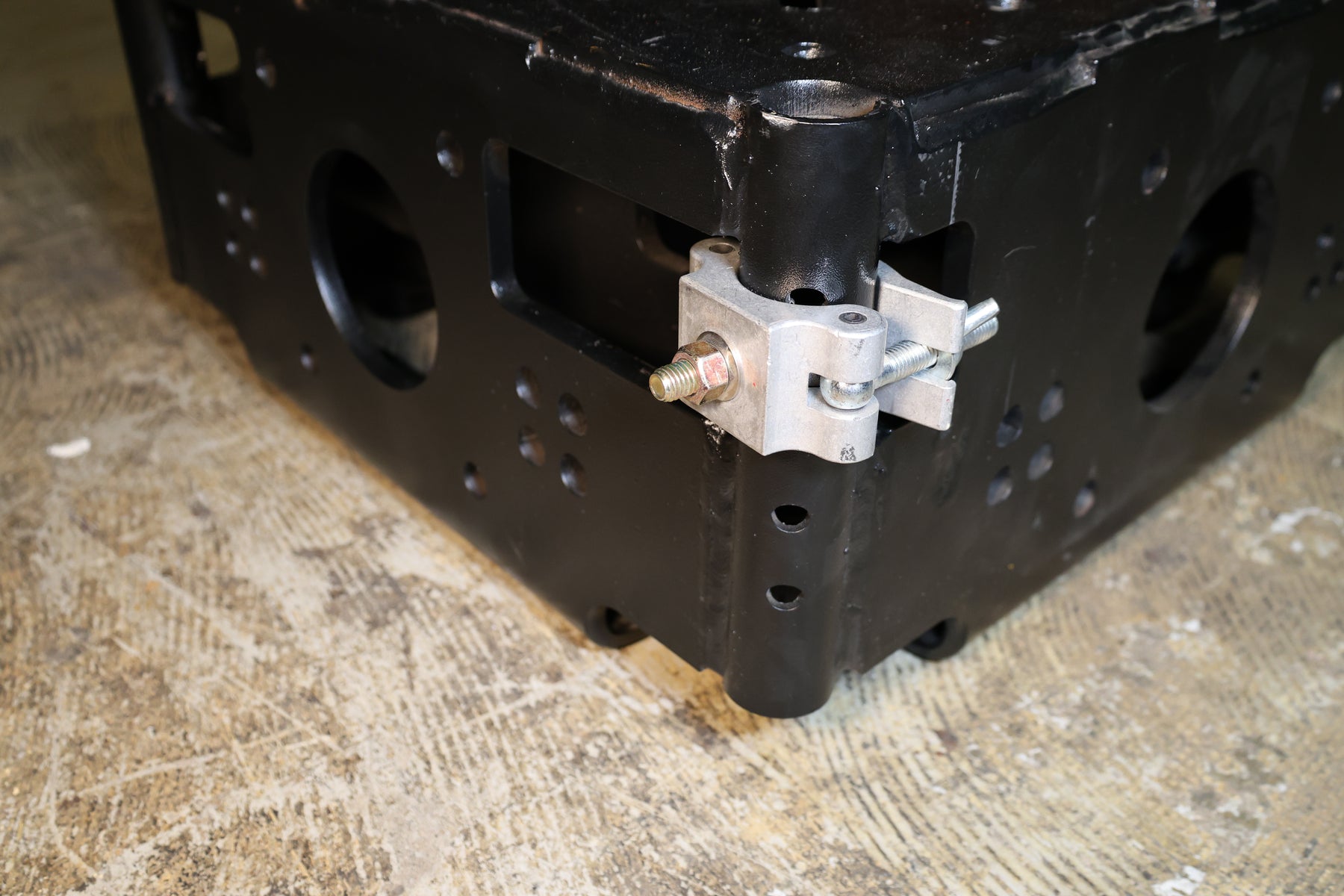

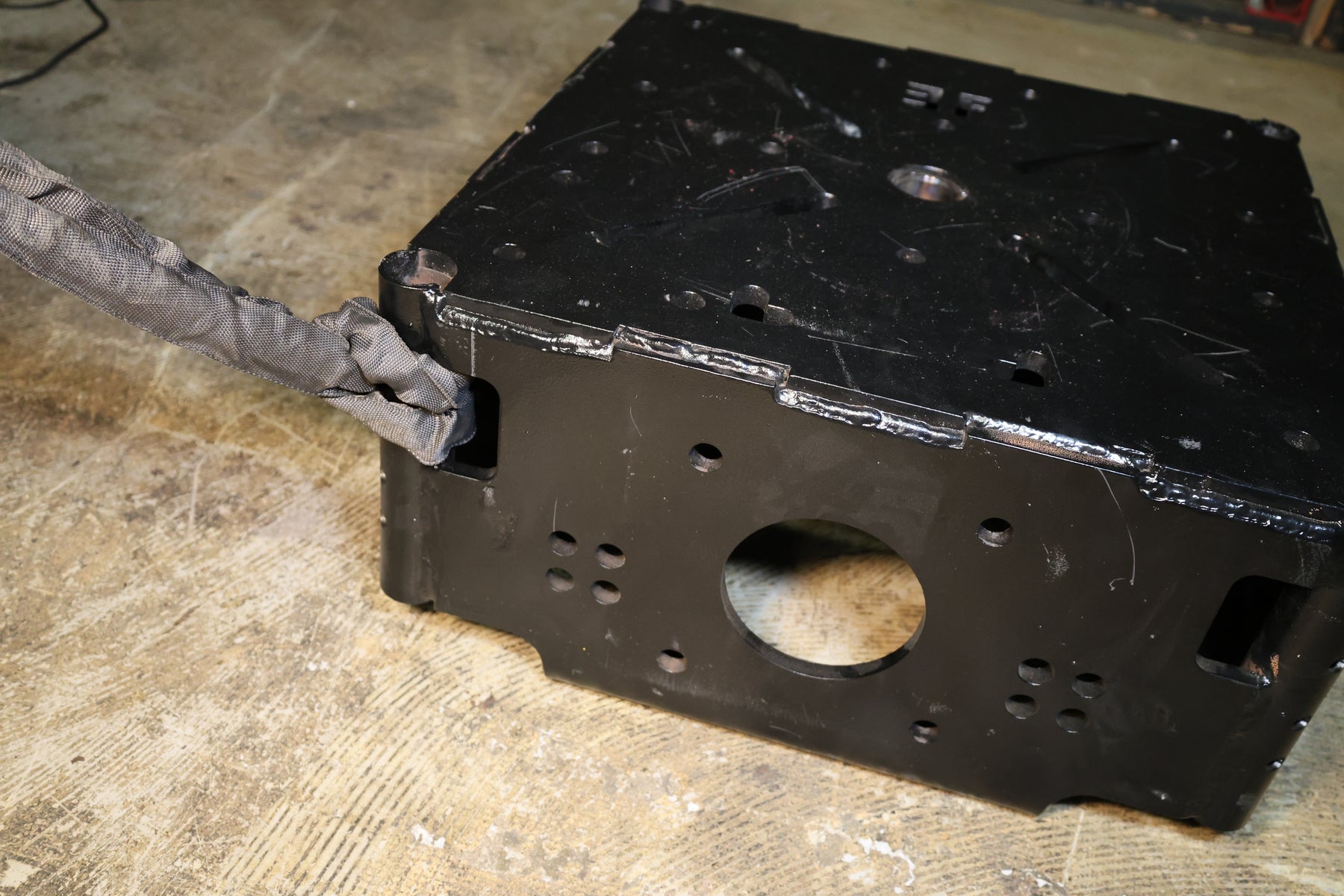

• Side knockouts: Allow direct connection of half couplers, cheeseboroughs, or slings

• Bolt patterns: Top and bottom holes align for stacking or bolting multiple units together

Mounting Options

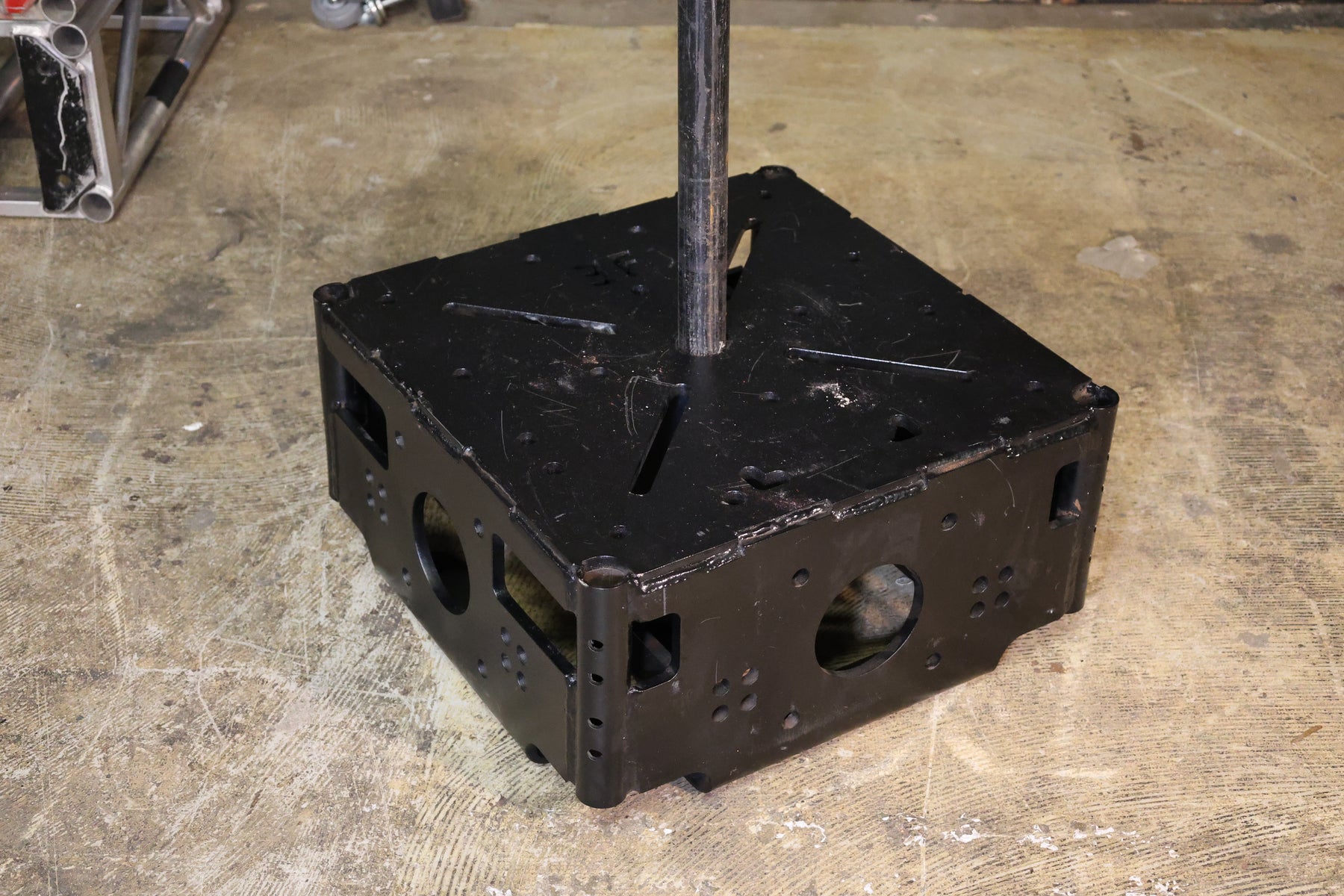

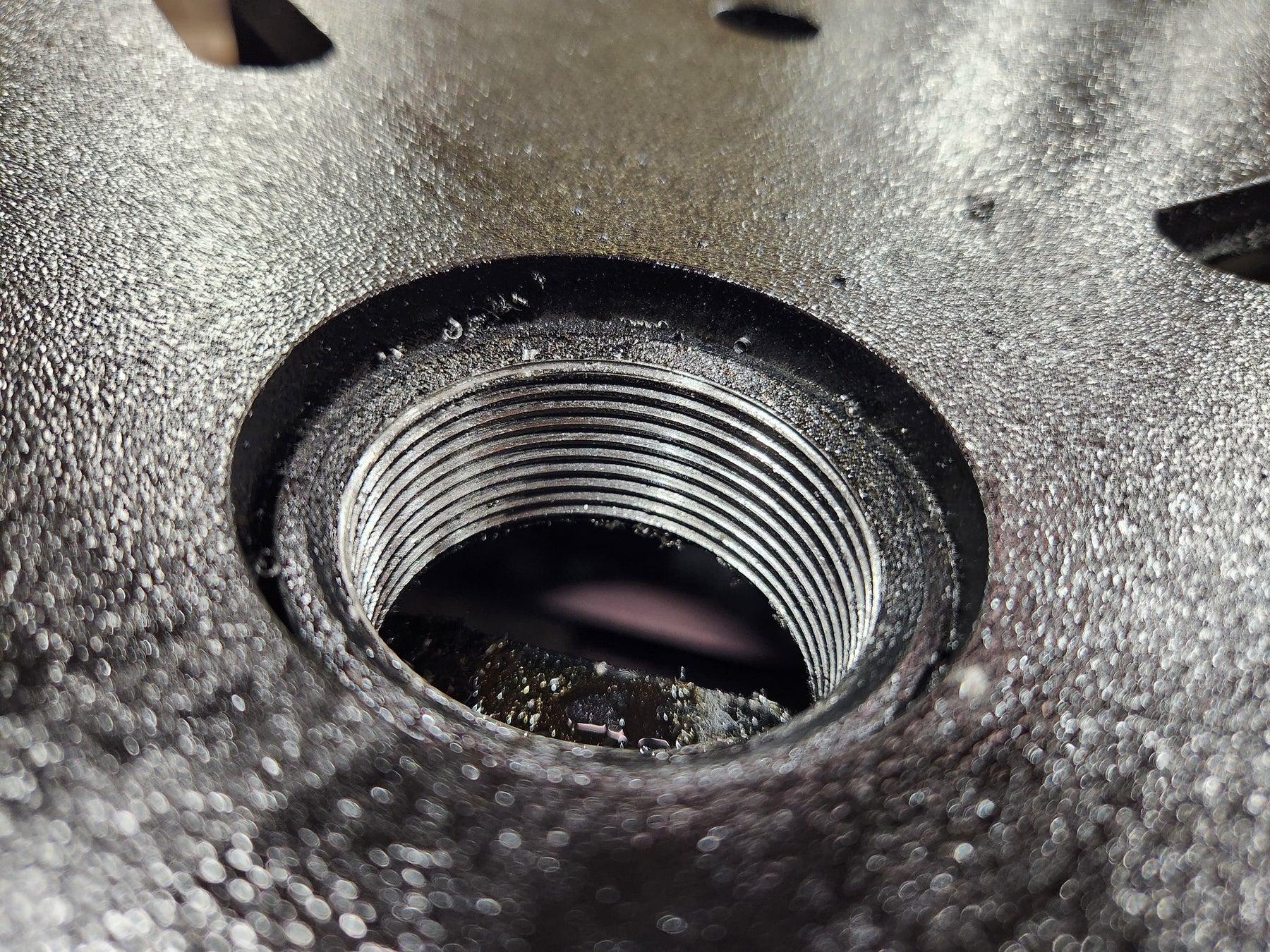

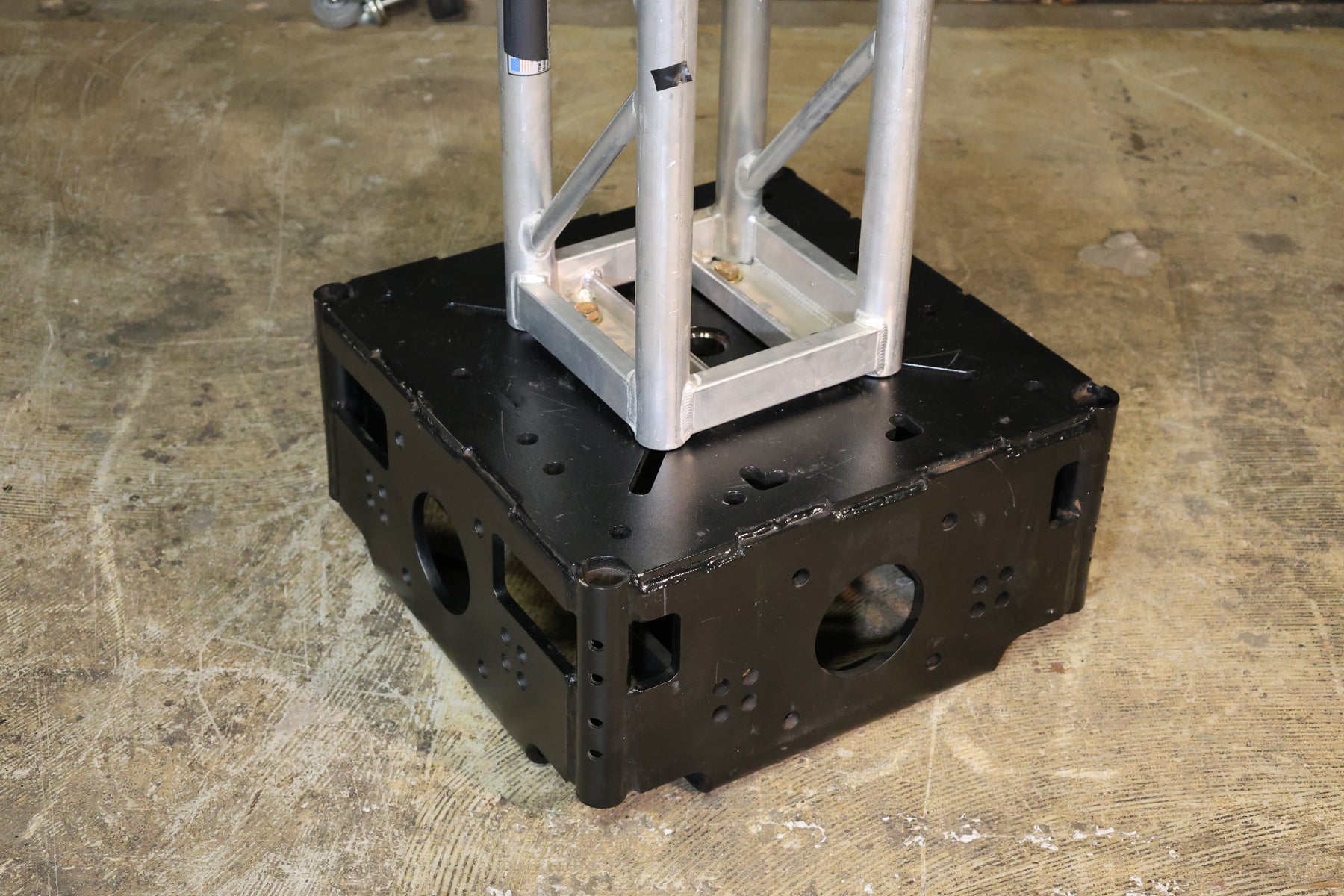

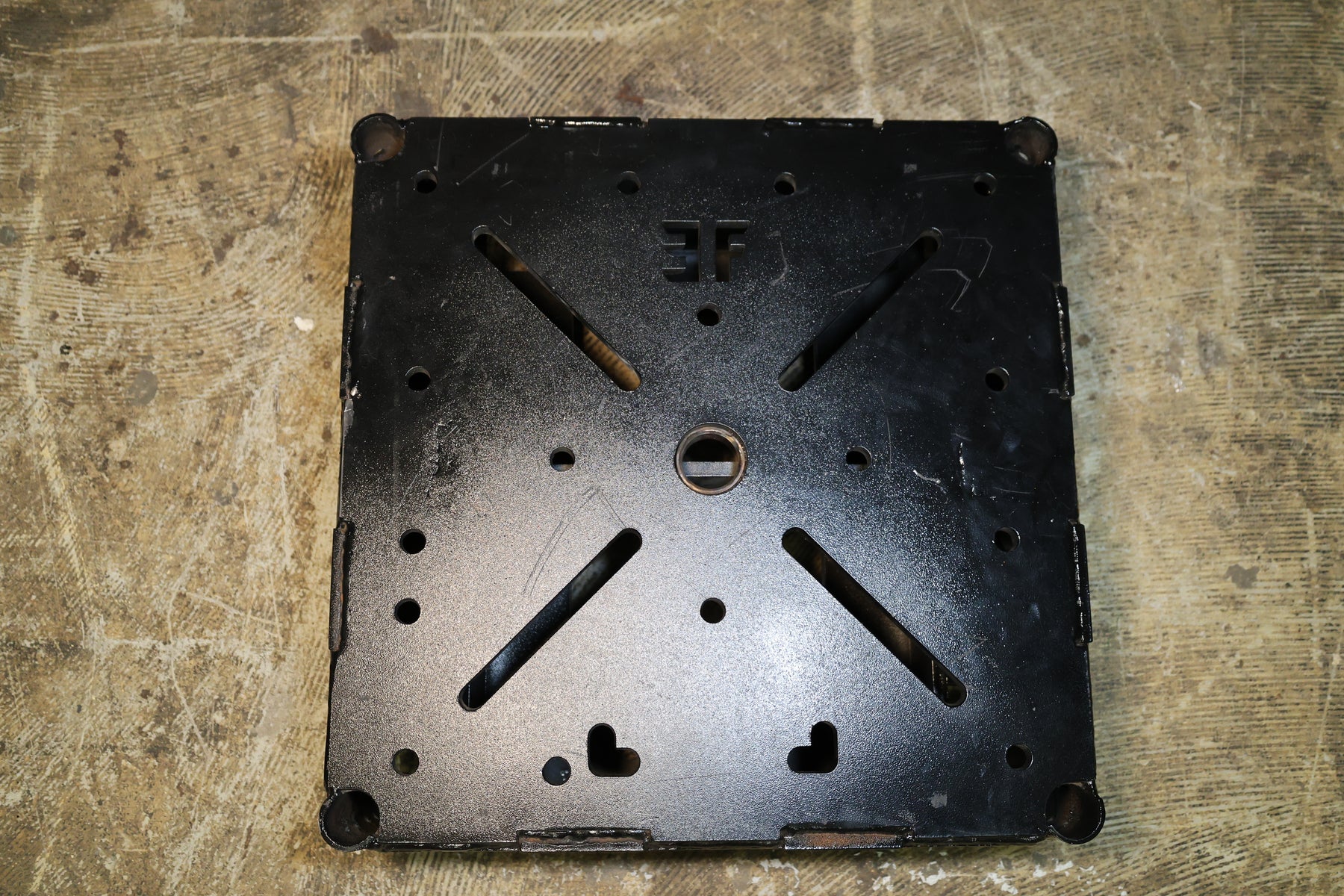

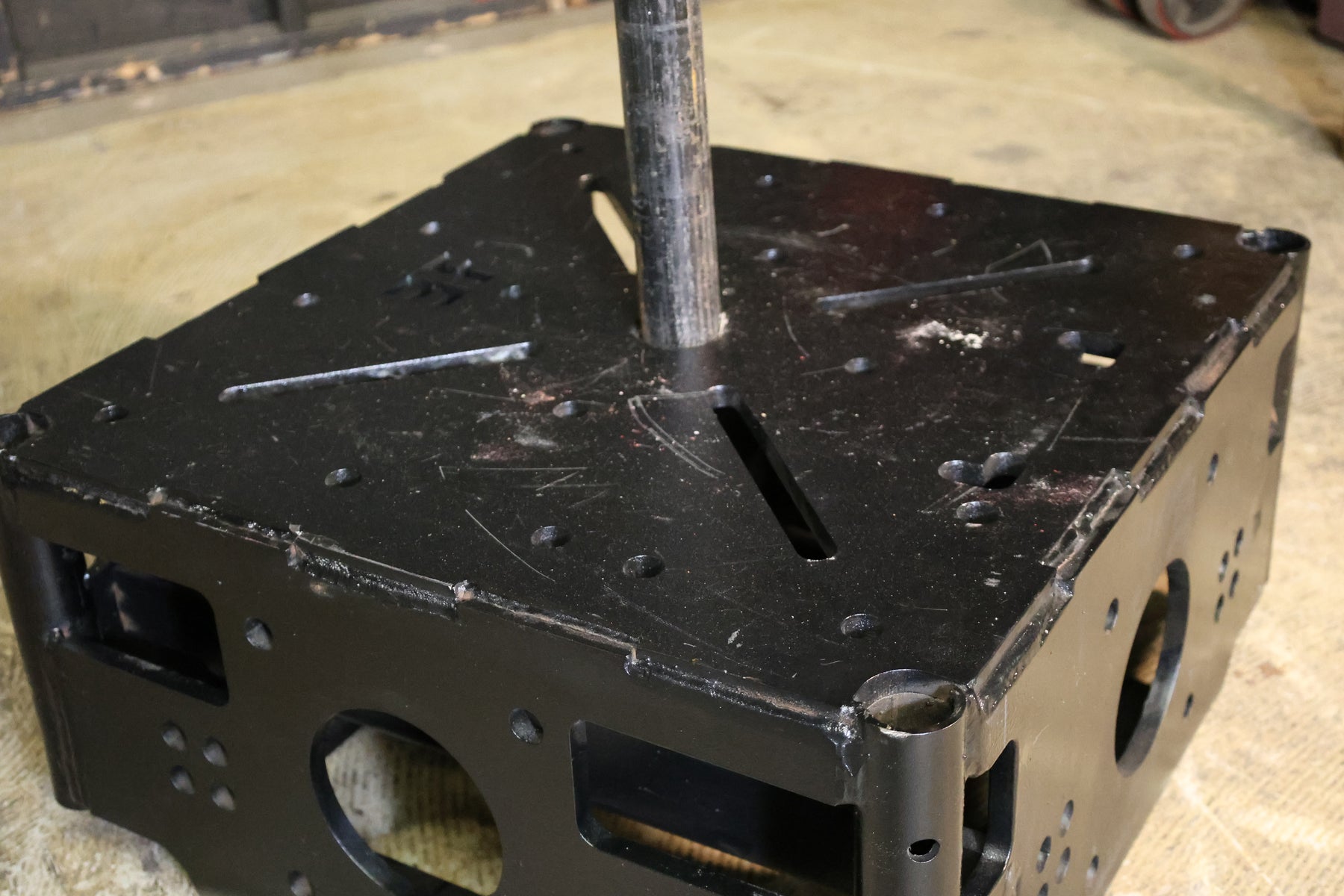

• Top plate: Supports square truss (12" to 20.5") or 1.5" pipe, mounted centrally

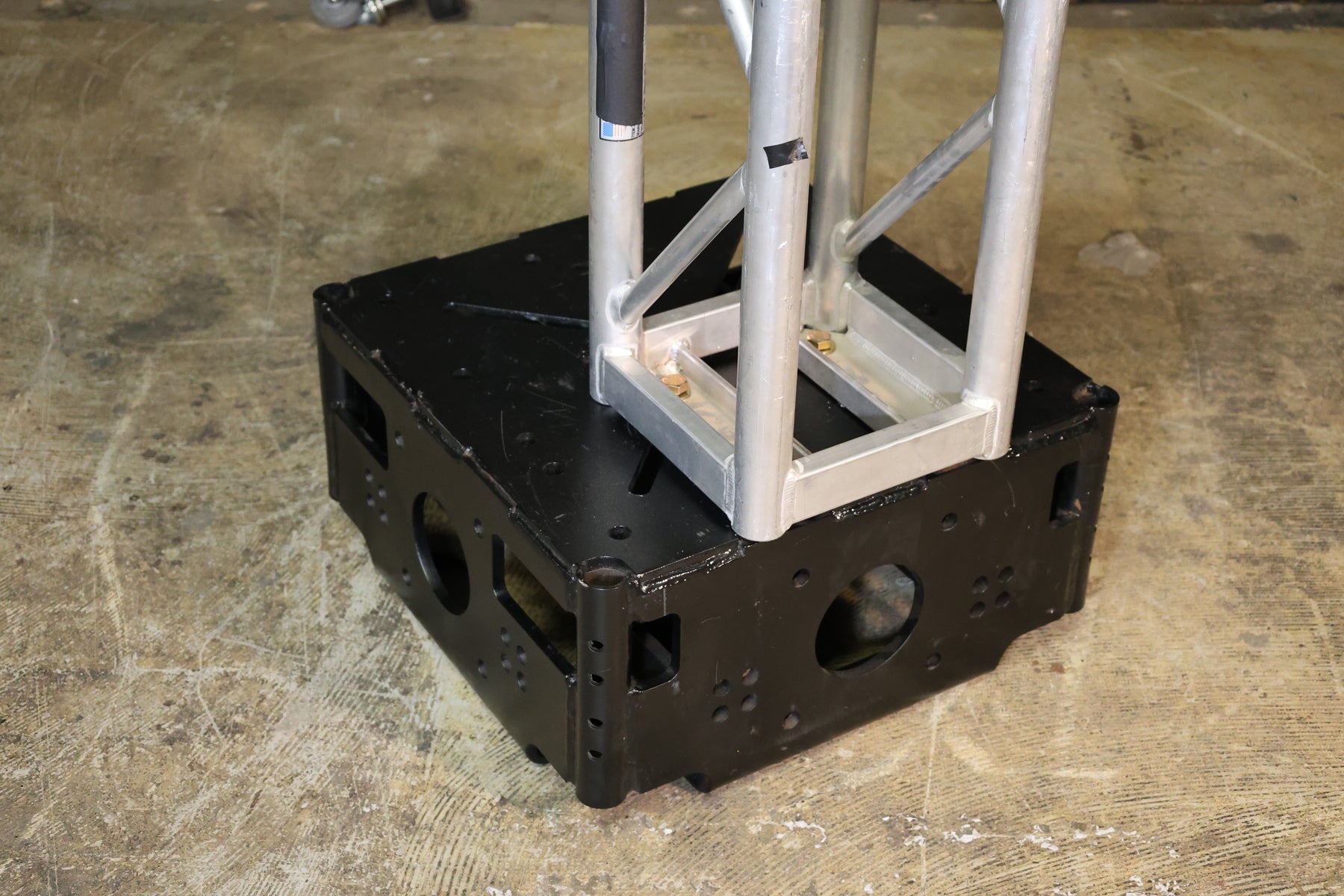

• Edge mounting: 12" truss can be mounted offset, in all 4 corners, or bridging units.

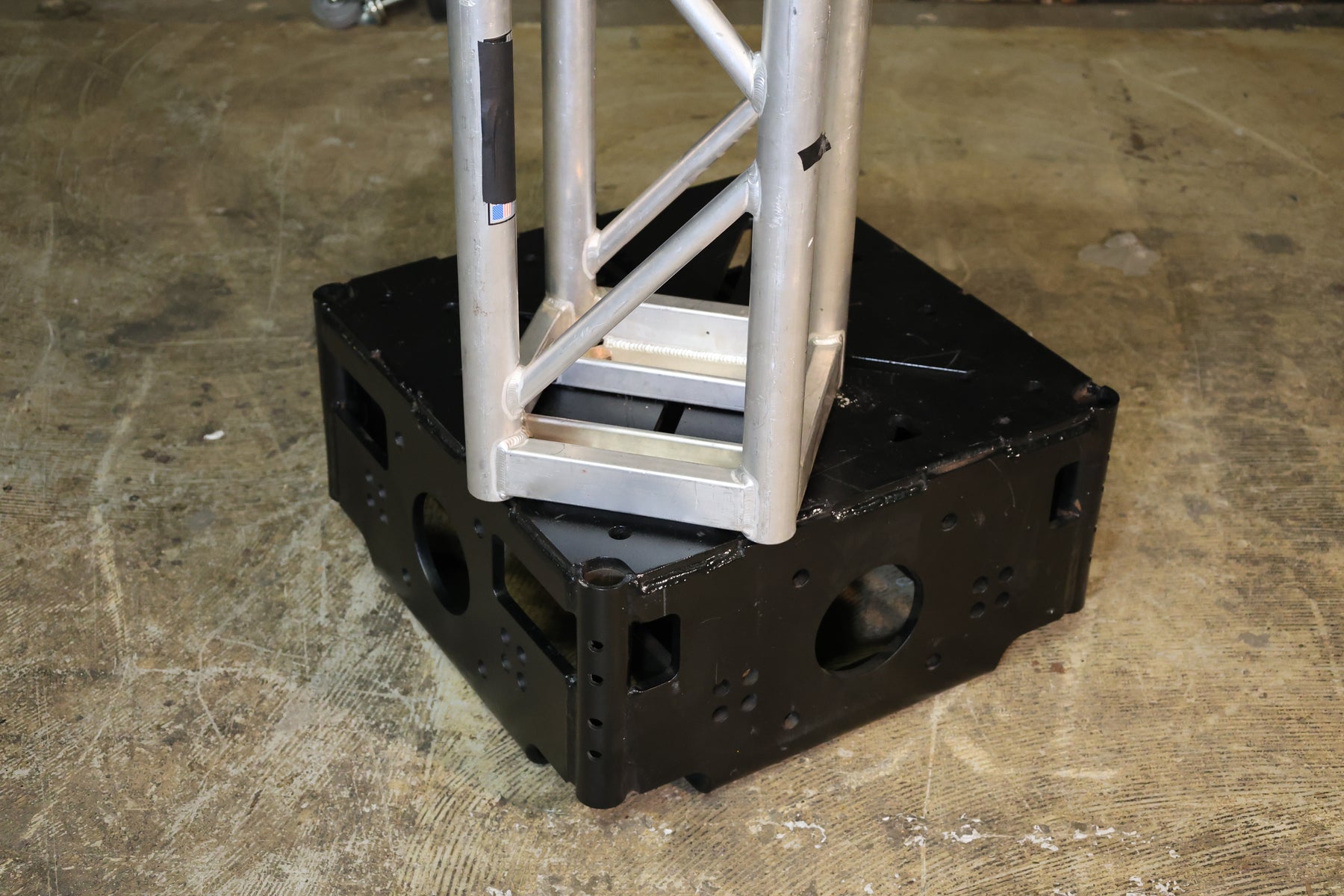

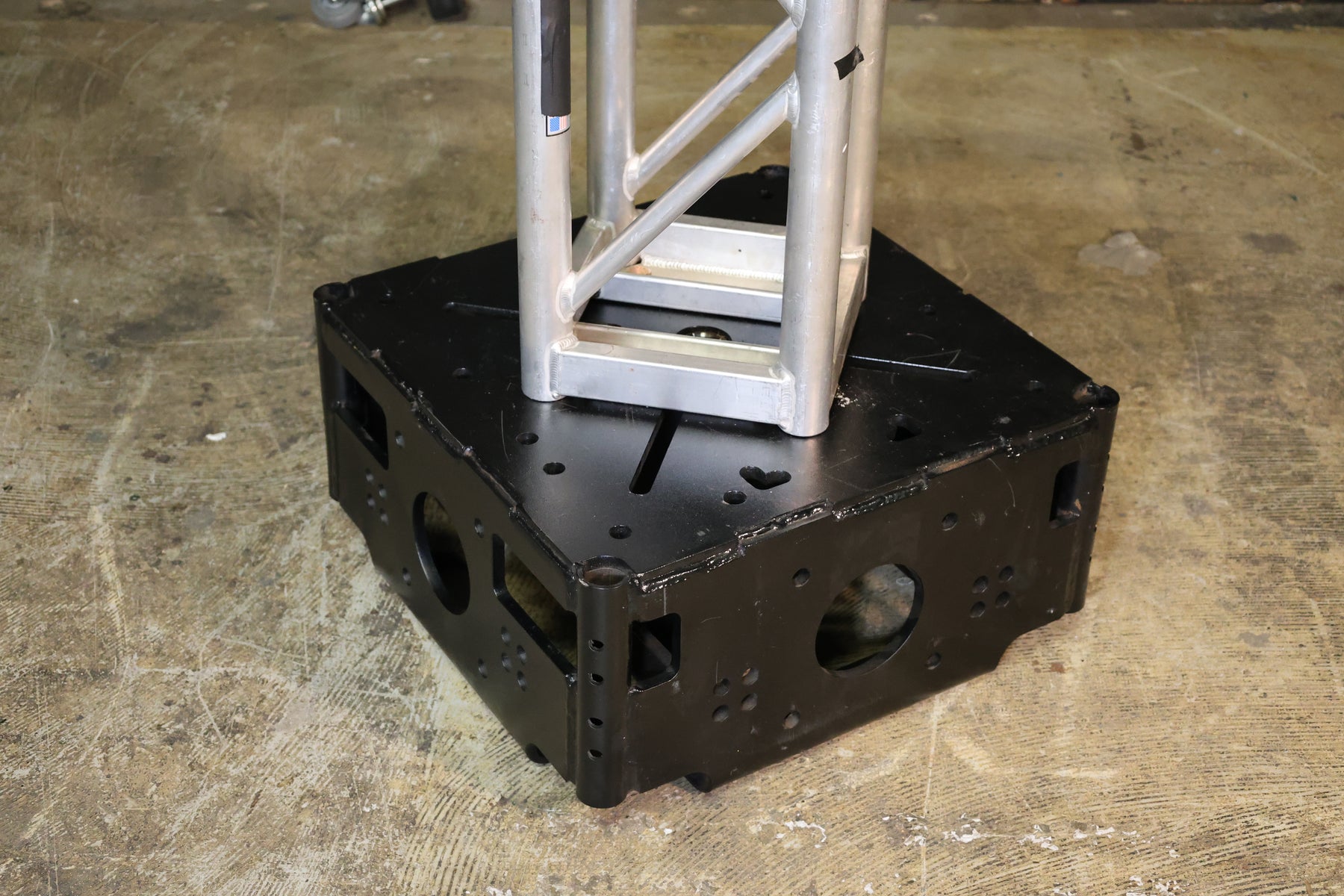

• Diamond orientation: Supports central or offset mounting patterns

• Stacked mode: Mount 16" or 20.5" truss to the sides when using two units together

Below are videos and animations showing this unit in action — including stacking methods, weight installation, and connection techniques.

Actual product design may vary from drawings due to Ent Fab constantly trying to improve its products, if you have a specific need or question feel free to call or email us.

Content on this product's page and others may show additional items for context.

For obvious reasons, this can only ship freight.
